- 01Identify sludge source→
- 02Record wet feed and dry solids→
- 03Confirm cake and filtrate objectives→
- 04Review testing and conditioning→
- 05Select press and interfaces
Settling, conditioning, filtration, filtrate treatment and thermal drying are separate decisions; final configuration depends on representative data and site responsibilities.
Material and Process Boundary
The sludge may come from wash water, a settling tank, hydrocyclone overflow or a blended stream. Geology, washing intensity, recycled water and sampling point change concentration and settling. Define both outputs: cake handling and filtrate reuse or treatment. A filter press does not prove water-quality compliance, and mechanical dewatering is not thermal drying.
- Identify the feed source and whether streams are settled, thickened or mixed.
- Separate wet feed volume from dry-solids loading.
| Selection item | Record for review |
|---|---|
| Feed | Source point, concentration estimate and variation |
| Operating pattern | Hours per day, batch or continuous collection |
| Outputs | Cake destination and filtrate objective |
| Site | Footprint, power, wash water and interfaces |
Press and Conditioning Choices

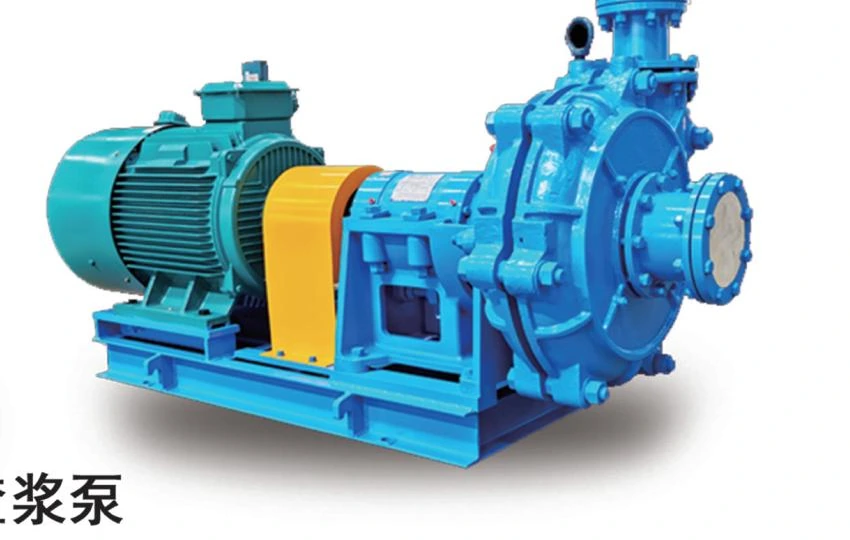

Settling or thickening may reduce the water load presented to the press; the feed pump must match the slurry. Conditioning must be established from actual material and testing, not a generic recipe. A chamber press is a candidate for contained batch filtration. A membrane press may be considered when a tested squeeze stage supports the cake objective. Automation can be evaluated with either structure.
- Compare chamber-only and membrane-squeeze cycles against tested cake handling needs.
- Keep filtrate quality verification separate from mechanical separation.
Data Needed Before Selection
Send a representative sample description rather than only the name “sand-washing sludge.” Record sampling point, date, process state, settling, wet condition and mixing method. Note solids results, particle description, temperature, pH if available and abrasive or sticky behavior. Filter area and chamber volume describe geometry, not guaranteed production rate. Cycle time and output depend on solids loading, permeability, cloth condition and operating practice.
| Check | Useful record |
|---|---|
| Sample | Source, date, operating state and mixing method |
| Solids | Wet basis and laboratory dry-solids result if available |
| Target | Cake handling and filtrate destination |
| Interfaces | Tank, pump, pipework, power and wash water |
| Testing | Sample quantity and requested acceptance observations |
Site Plan and Enquiry Information
The application review defines material inputs; the sand-washing water-recycling system page defines module connections and site responsibilities. State who supplies tanks and pipework, confirms civil and electrical interfaces, handles filtrate requirements and moves cake. Send a process sketch, photographs, sample information and pump data. Mark unknown fields Not Sure.
- Material source, wet feed volume with units, dry-solids estimate and hours per day.
- Cake handling method, filtrate destination, temperature, pH and sample results.
- Footprint, power standard, wash water, pump details and attachments.
Frequently Asked Questions
Can a press be selected from the name sand-washing sludge alone?
No. Fine solids, clay content, concentration and output objectives vary. Provide representative material and operating data.
Does a filter press automatically make recycled water compliant?
No. It separates solids and liquid; reuse, further treatment and compliance verification remain project-specific.
Should I request a chamber or membrane press?
That depends on tested slurry and cake handling. A membrane squeeze may be considered when an additional mechanical stage is justified; automation can be evaluated with either structure.
What sample information helps most?
Sampling point, date, process state, settling behavior, estimated solids, laboratory results and photographs of the tank or process location.
