Stone Wastewater Dewatering and Water Recovery

What Stone Wastewater Requires

Stone wastewater is not a single standard slurry. It may contain fine mineral particles from cutting, coarse grit from sawing, polishing residues, or solids that have already settled in a pit. The particle-size distribution, solids concentration, abrasive character, temperature, pH, and use of cutting additives can change filtration behavior. A clear filtrate from one workshop does not prove that the same cycle will suit another workshop.

The application objective is usually to collect stone powder as a manageable filter cake while routing clarified filtrate to a site-defined reuse or discharge step. A filter press separates suspended solids; it does not by itself guarantee that recovered water meets a regulatory or process-water limit, and it is not a thermal dryer. Confirm the downstream water criterion and the intended handling of wet cake before equipment selection.

• Identify whether the feed comes from cutting, edge trimming, grinding, polishing, or a mixed drainage network.
• Separate heavy grit and settled sludge from floating debris before the press feed point where practical.
• Keep wet feed quantity separate from dry-solids quantity when describing the project.
• Define whether filtrate will return to a process tank, go to further treatment, or be assessed for discharge.
• Treat any chemical additive, coolant, or polishing compound as a material-compatibility and sample-testing item.

A Practical Stone Wastewater Process Route

A stone wastewater installation commonly links collection, solids equalization, filter-press feeding, cake discharge, and filtrate return. The exact arrangement depends on the existing pits and tanks. The application page describes the material route; the stone wastewater treatment system page should be used to define module connections, interfaces, and site responsibilities.

The press cycle may include filling, filtration, optional squeezing or other confirmed cycle steps, opening, and cake removal. Cloth washing is a maintenance or cleaning operation, while cake washing is a separate process objective and should not be assumed for stone powder. Cycle stages, pump control, and any automatic functions must be confirmed against the selected machine and the tested slurry.

• 1. Capture wastewater from cutting and polishing points and prevent large debris from entering the feed pump.
• 2. Equalize or settle the stream sufficiently to provide a representative, controllable feed to the press.

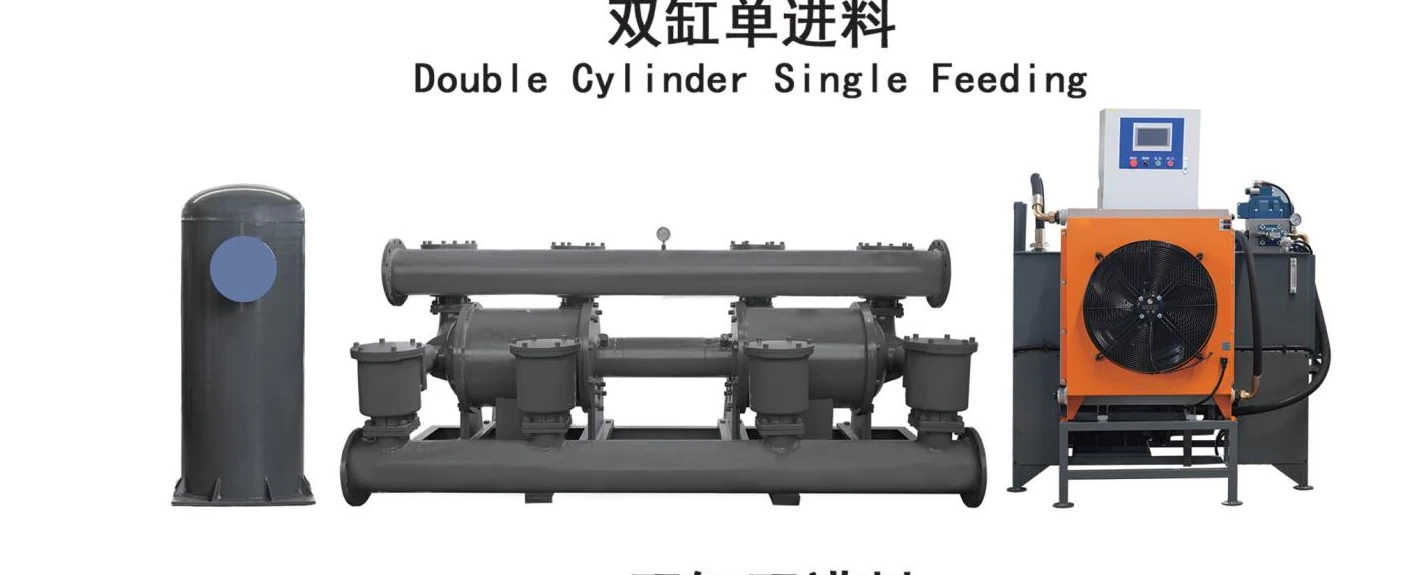

• 3. Feed the press through a suitable pump arrangement; confirm pump material, head, flow behavior, and control method.
• 4. Collect filtrate in a designated tank and verify whether it can be returned or needs additional treatment.
• 5. Open and discharge the stone cake only after the cycle is complete and all safety conditions permit opening.
• 6. Store, reuse, transport, or further process the cake according to the site's handling decision.

Equipment Configurations to Consider

A chamber filter press is a starting point for many stone-powder dewatering discussions because its recessed plates create filter chambers and support batch cake formation. A membrane filter press may be considered when a tested squeeze stage is relevant to the material and cake-handling objective. An automatic filter press can reduce repeated manual actions through configured plate shifting, cycle controls, or related mechanisms, but automation does not remove the need for an operator, inspection, safe isolation, and material checks.

The correct choice is not made from the application name alone. It depends on solids loading, filtration behavior, desired cake handling, available floor space, feed and filtrate piping, power, wash-water arrangements, and the level of operator involvement. Plate and cloth selection should be confirmed from the actual press design and slurry sample rather than assumed from a nominal size.

• Chamber press: consider for straightforward batch filtration where chamber cake formation is the primary task.
• Membrane press: consider only when a confirmed squeeze stage and compatible plate, membrane, and utilities are justified by testing.
• Automatic functions: define which actions are controlled and which inspections remain manual.
• Filter plates and cloths: confirm dimensions, sealing, feed and outlet holes, cloth attachment, material, and abrasive service.
• Feed pump and tanks: size and specify them as connected modules, not as an assumed part of every application package.

Data to Send for Stone Wastewater Selection

Send a representative sample or reliable test record together with a short process description. Include both current conditions and the intended change; a request to recover water may require different checks from a request focused on cake transport. If a value is unknown, mark it as Not Sure rather than estimating it. Shengqi can then identify the remaining confirmation items before recommending a configuration.

Useful photos show the cutting or polishing area, collection pit, settling equipment, existing pump and pipework, available installation space, and the cake discharge route. A nameplate photo is important when replacing an existing press plate or cloth. These records support selection but do not replace a controlled filtration test when behavior is uncertain.

Installation and Operation Boundaries

Before installation, confirm a level foundation, access for plate and cloth service, safe cake discharge clearance, feed and filtrate pipe routes, drain points, electrical supply, control location, and lifting arrangements. Protect the press and pump from unplanned debris. The site team should define where wash water, spills, and settled solids are managed.

Operators should follow the supplied operating and isolation procedure. Do not open a press under pressure, perform electrical work while energized, or bypass guards and interlocks. If a cycle, leak, pump behavior, or filtrate change is abnormal, stop using the relevant equipment under the approved safe procedure and request inspection. Do not apply a generic chemical-cleaning recipe: cleaning compatibility depends on the cloth, plate, seals, stone residues, and site safety controls.

• Confirm foundation, lifting path, walkways, guarding, emergency stops, and inspection access before delivery.
• Keep feed pressure, any squeeze pressure, and hydraulic-system pressure as separate confirmed values.
• Record cloth condition, plate sealing, feed clarity, cake release, and cycle observations during commissioning.
• Plan cloth washing separately from any cake-washing requirement; stone wastewater filtration normally needs a defined cake objective, not an assumed wash stage.
• Use the maintenance service route for replacement parts, inspection support, and troubleshooting.

Next Step: Review the Slurry Before Final Selection

For a stone wastewater project, the fastest useful inquiry includes the process source, slurry and solids information, filtrate destination, cake plan, operating schedule, site photos, and available layout. Andy can use these details to identify whether a chamber, membrane, or automated arrangement should be tested and which connected modules require separate confirmation. Contact Shandong Shengqi Environmental Protection Equipment Co., Ltd. with your sample information, drawings, or photographs before treating any unverified figure as a performance commitment.
